• With CIP extraction and delivery capacity; pump body and pump cover can discharge liquid completely.
• At the area contacting wıth medium. Shaft and seal connect without screw.
• Single and double mechanical seal options
• All models have seal flush ports lor optional double.
• Steam online available.
• All stainless stecl design, including gearbox.

Simple lnstallation and Disassembly
• The screw and shaft are connectcd by spline. It’s simple and convenient for installation and disassembly.

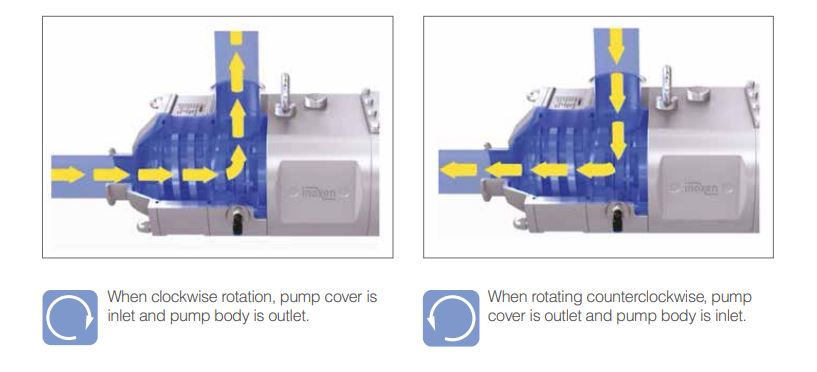

• Rotate clockwise and counterclockwise without changing configuration.
• The pump can be used for various viscosities without changing configurations, etc.

Features
• Pressure up to 300 psi (20.0 bar).
• Special screw lock nut designed to extend service life.
• There are no bearings and screws at the area contacting with medium.
• Large diameter 17-4PH shaft lor higher strength and stittness. Helping to reduce vibration and extend seal life.
• High precision heavy duty needle roller bearings .
• Oil-lubricated bearings can be forward lubrication over the entıre speed. Temperature and pressure range.

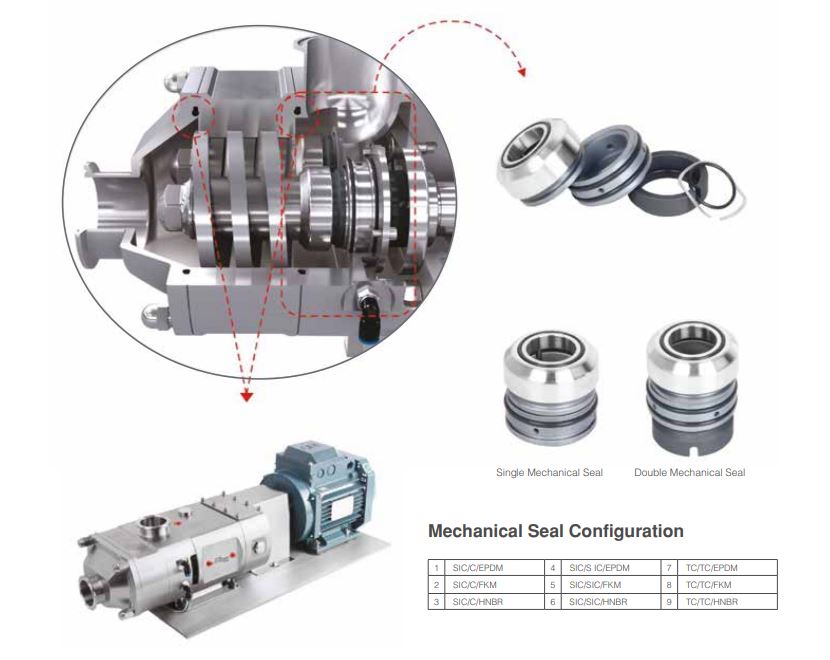

Twin screw pump mechanical seal design

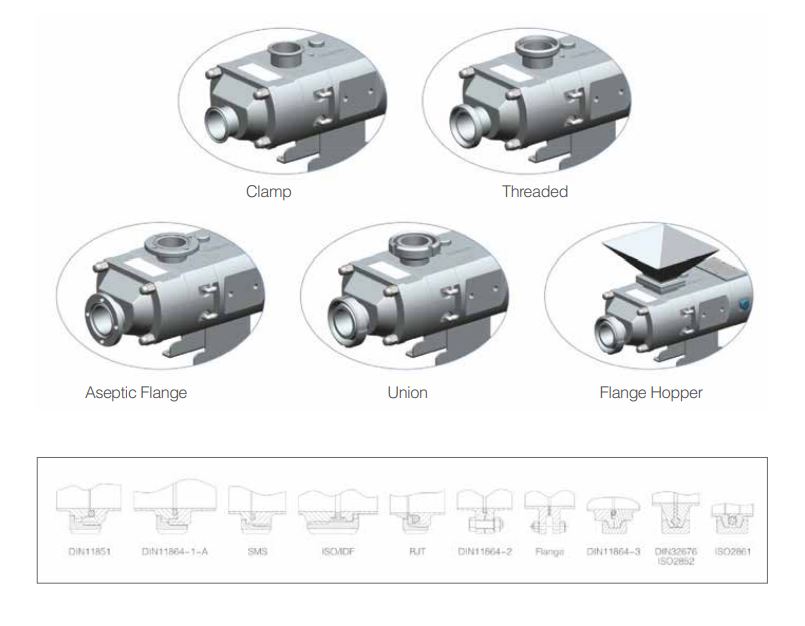

Pump inlet/outlet connection standard
